GW Series HV Disconnector

GW series model outdoor HV AC disconnectors are used in HV lines from 72.5 to 145kV power systems, in the case of no-load current to switch lines and to carry out electrical isolation in order to repair HV busbars, circuit breakers, other electrical equipment and charged HV lines.
This series of disconnectors can be equipped with CJ6B electric operating mechanism or CS17 or CS9 manual operating mechanism.
The disconnector is manufactured under the IEC 62271-102 standard.

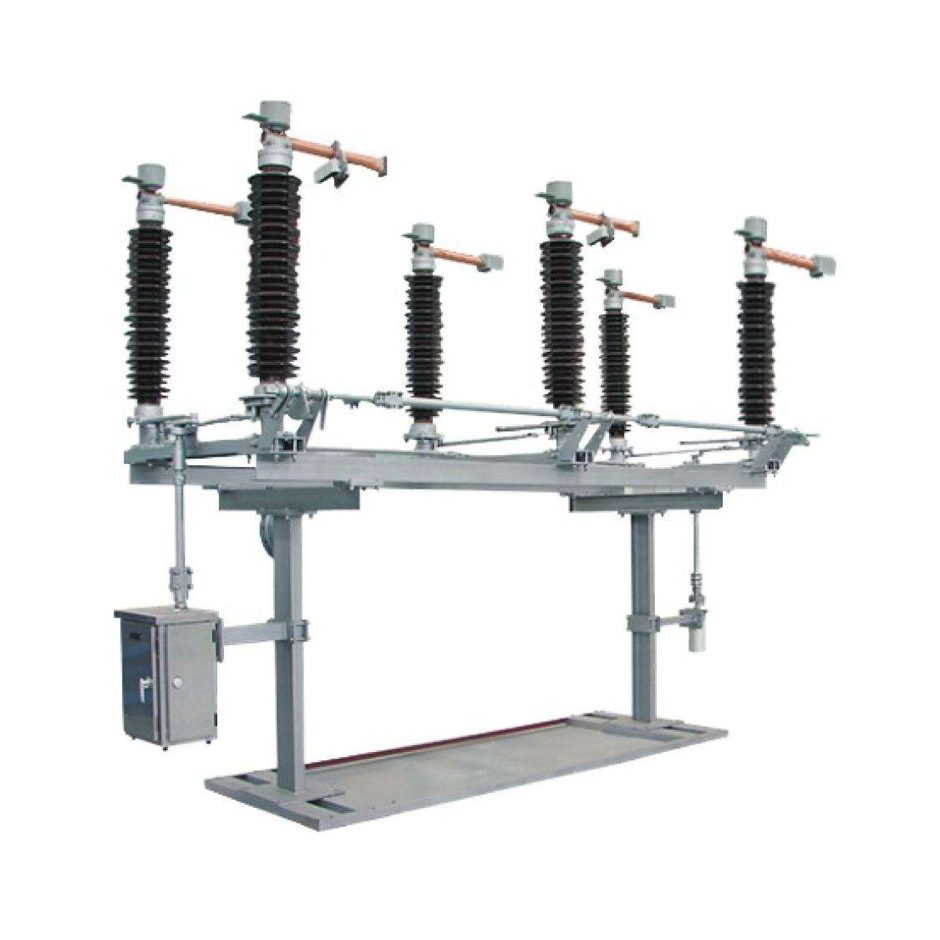

GW4 SERIES HIGH VOLTAGE DISCONNECTORS
TECHNICAL DATA
S/N Item Unit data
1 Rated voltage kV 72.5 126 145
2 Rated current A 630 1250 2000
3 Rated peak withstand voltage kA 63 80 100
4 Rated short-time withstand current 25 31.5 40
5 Rated short-time withstand time S 3
6 1min. P.F. withstand voltage (effective value) phase to earth kV 160 230 275
across open contacts 200 230+73 315
7 Rated lightning impulse withstand voltage phase to earth 350 550 650
8 across open contacts 410 550+103 750
9 Main loop resistor 630A uΩ ≤200 ≤225 ≤250
1250A ≤125 ≤150 ≤175
2000A ≤80 ≤120 ≤125
10 Main blade open contacts mm ≥900 ≥1200 ≥1500
11 Single phase weight kg 250 300 350
12 Mechanical steady operating times time 3000
13 Operating mechanism type main blade time CJ6B or CS17 or CS9
earth blade CS17 or CS9

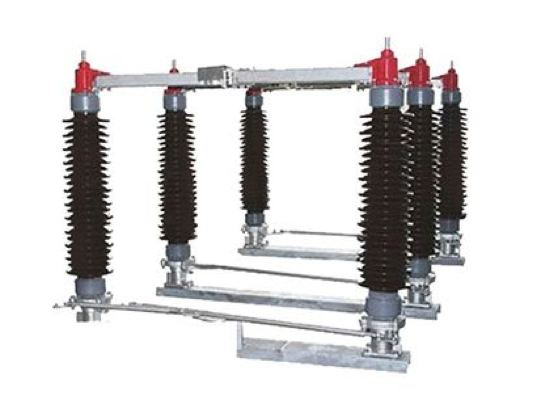

GW Series MV Disconnector

GW series model outdoor MV AC disconnectors are used in MV lines for power systems up to 40.5kV, in the case of no-load current to switch lines and to carry out electrical isolation in order to repair MV busbars, circuit breakers, other electrical equipment and charged MV lines. The disconnector is manufactured under the IEC 62271-102 standard.

TECHNICAL DATA
S/N Item Unit Parameter
1 Rated voltage kV 40.5
2 Rated insulation level
3 Rated power frequency withstand voltage (1 min)
4 To earth kV 95
5 Across open breaks kV 118
6 Rated lightning impulse withstand voltage
7 To earth kV 185
8 Across open breaks kV 215
9 Rated frequency Hz 50/60
10 Rated current A 630,1250,2000
11 Rated short-time withstand current kA 31.5,40,50
12 Rated peak withstand current kA 80,100,125
13 Rated duration of short circuit Primary switch/ earthing switch s 4/4
14 Rated terminal mechanical load kV 215
15 Horizontal-logntitudinal N 750
16 Horizontal- vertical N 500
17 Vertical force N 750
18 Creepage distance mm 1013,1256
19 Mechnical endurance times 5000
20 Motor operating mechanism
21 Model CJJ
22 Motor voltage V AC 380,DC220,DC110
23 cControl circuit's voltage V AC 380,AC 220,DC220,DC110
24 Opening time and closing time s 7+/-1
25 Manual operating mechanism
26 Model CS14G
27 Electromagnetic lock's voltage V AC 380,DC220,DC110
